Basic Specifications
|
Specification
|
Details
|
|

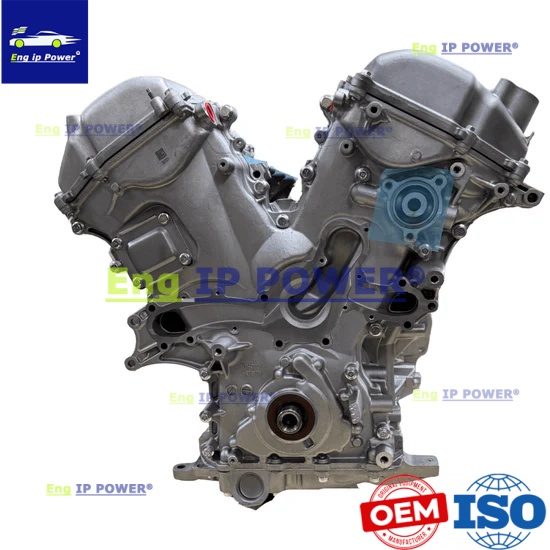

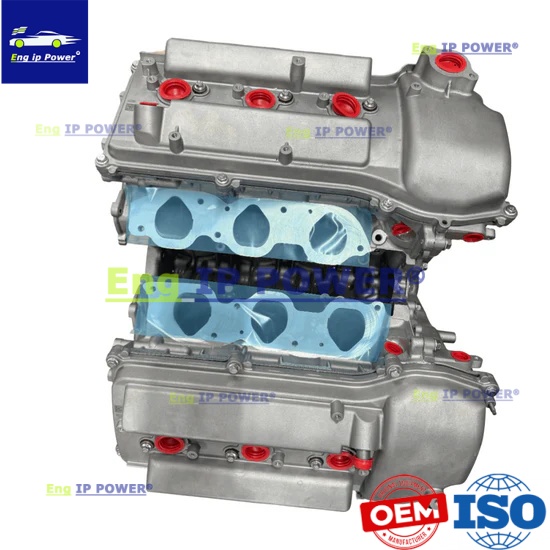

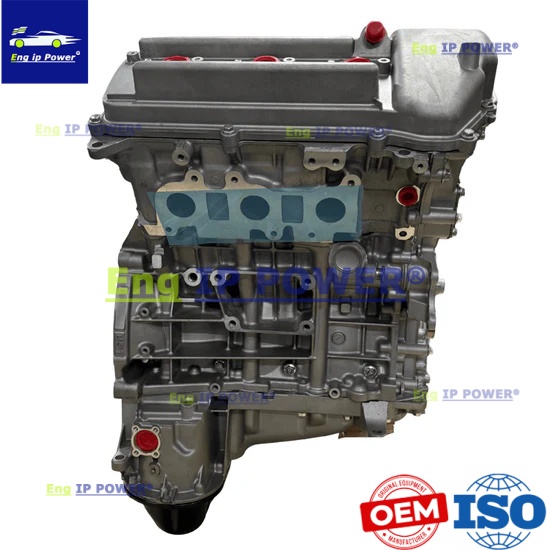

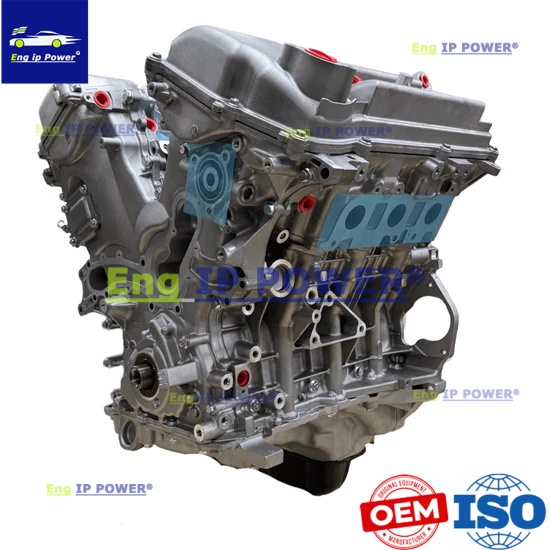

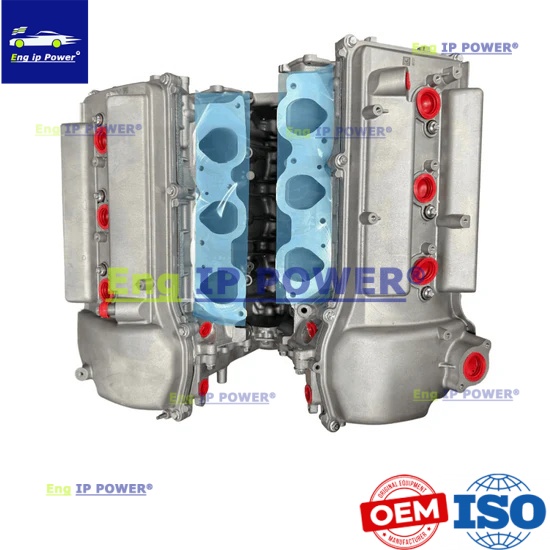

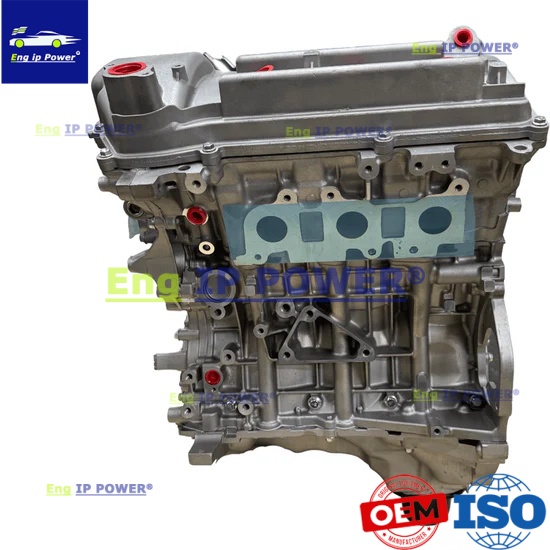

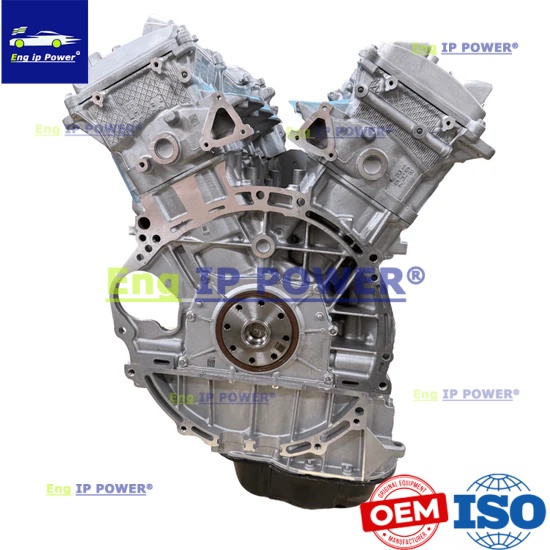

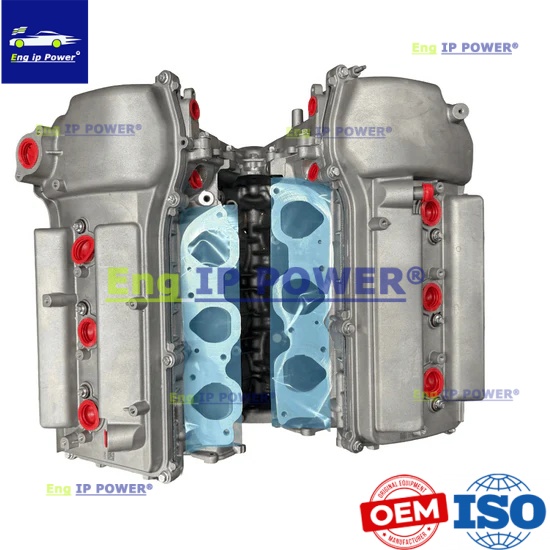

Engine Model
|
1GR-FE
|
|
Type
|
V6 DOHC 24-valve
|
|
Displacement
|
3956 cc (4.0L)
|
|
Bore × Stroke
|
94 × 95 mm
|
|
Block Material
|
Aluminum alloy
|
|
Valve System
|
Dual overhead camshafts
|
|
Timing System
|
Chain-driven
|
|
Fuel System
|
EFI (Electronic Fuel Injection)
|
|
Power
|
236–285 hp (varies by year)
|
|
Torque
|
376–381 Nm
|
1GR-FE Generations
First Generation (2002–2009)
-
Single VVT-i (variable valve timing on intake)
-
Power: ~236–249 hp
-
Electronic throttle control
-
Common models: Prado 120, Tacoma, Tundra, Hilux, FJ Cruiser, 4Runner
Second Generation (2009–Present)
-
Dual VVT-i (intake and exhaust)
-
Power: ~270–285 hp
-
Improved fuel efficiency
-
Higher emission standards
-
Common models: Prado 150, 4Runner, Tacoma, Tundra, Hilux, Fortuner
Common Issues
-
Water Pump Leakage – Often appears at 80k–150k km
-
Ignition Coil Wear – Causes misfires (P030X codes)
-
Timing Chain Tensioner Noise – Cold start clicking
-
VVT-i Actuator Noise – Short noise on startup
-
Valve Cover Gasket Leak – Due to aging rubber gaskets
Engine Code Differences
|
Code
|
Feature
|
|
1GR-FE Single VVT-i
|
First generation
|
|
1GR-FE Dual VVT-i
|
Second generation
|
|
Domestic 1GR-FE
|
Local production Prado 4.0
|
Compatibility & Swaps
|
Component
|
Compatibility
|
|
Engine block
|
Mostly compatible
|
|
Crankshaft
|
Mostly compatible
|
|
Connecting rods & pistons
|
Largely compatible
|
|
Cylinder head
|
Single vs dual VVT differs
|
|
ECU
|
Different
|
|
Wiring harness
|
Different
|
|
Camshaft
|
Different
|
|
Timing components
|
Some differences
|
Short Block Swap: Generally possible between generations.
Long Block Swap: Requires matching ECU, wiring, intake/exhaust manifolds, VVT system, and sensors.
Common Applications
|
Vehicle
|
Years
|
|
Toyota Prado 120
|
2002–2009
|
|
Toyota Prado 150
|
2009–Present
|
|
Toyota FJ Cruiser
|
2007–2022
|
|
Toyota Tacoma
|
2005–2024
|
|
Toyota Hilux
|
Select markets
|
|
Toyota Fortuner
|
Select markets
|
|
Toyota 4Runner
|
2003–2024
|
|
Toyota Tundra
|
2005–2014
|
