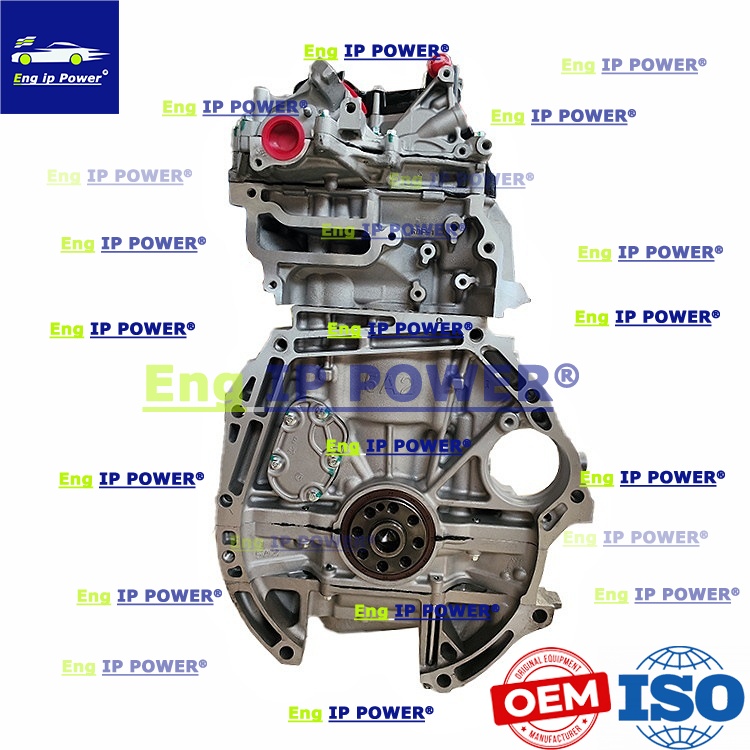

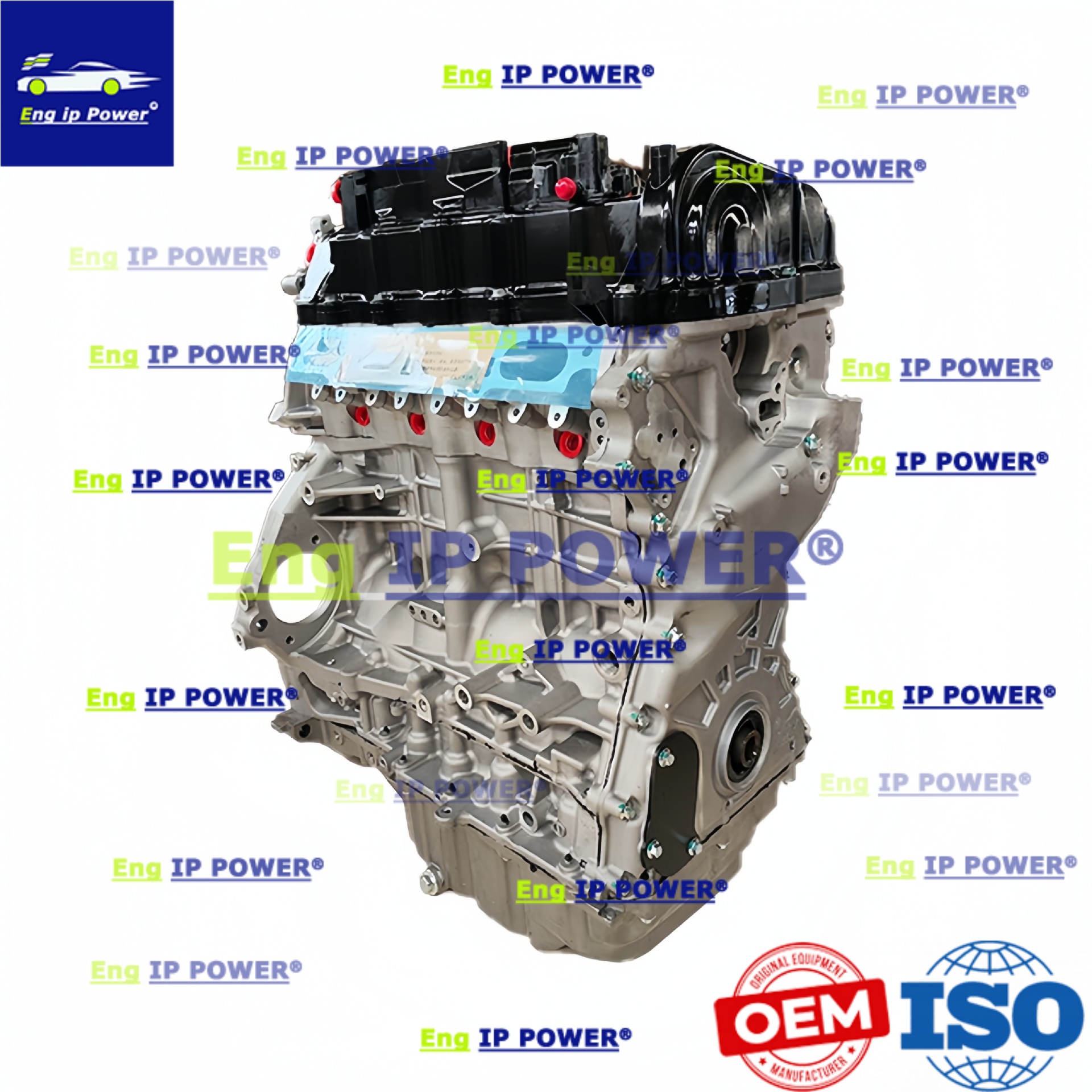

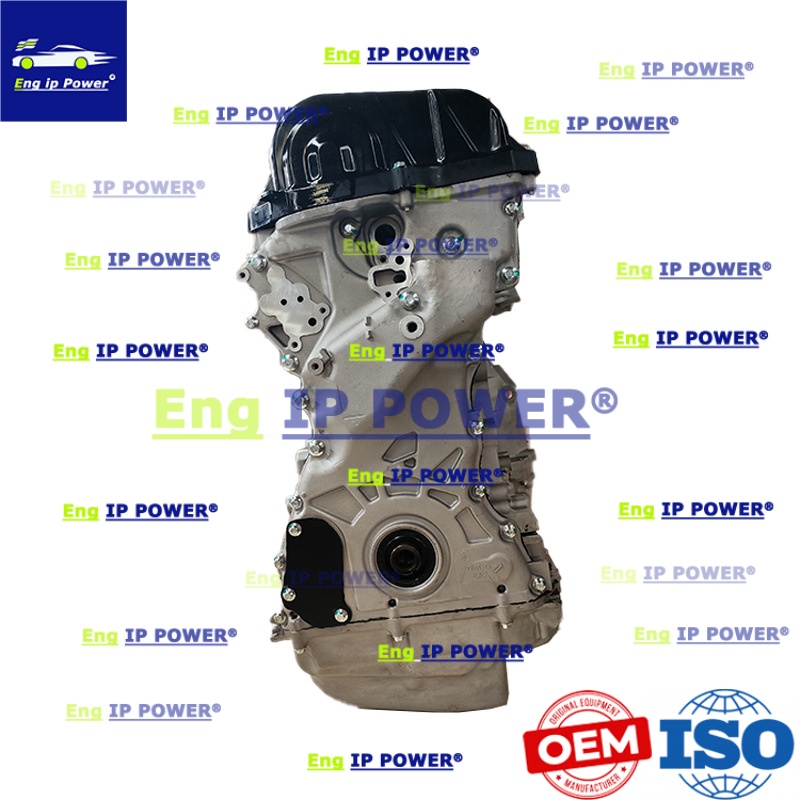

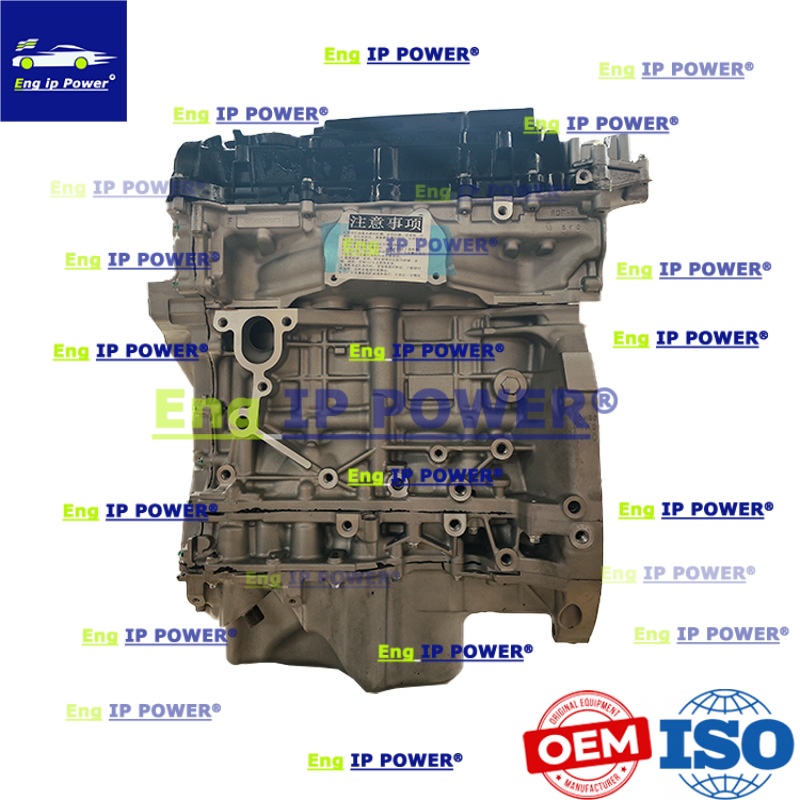

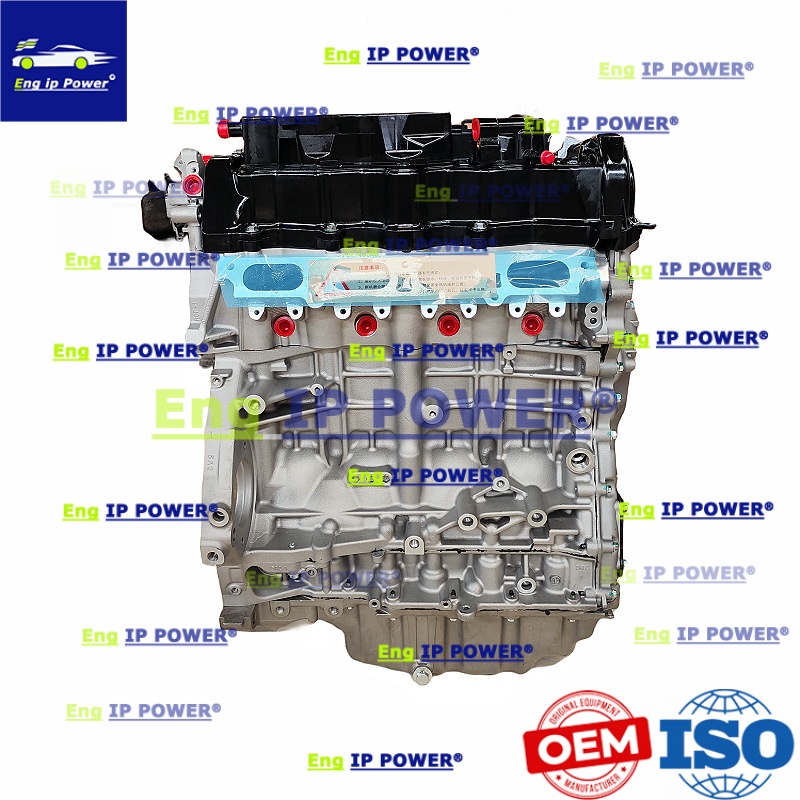

Part Name
|
OEM Number
|
Remarks
|
|
Complete Assembled Cylinder Head (With Camshafts, Valves, High Pressure Fuel Pump)
|
10003-5A2-A00
|
Full assembly head for K24W1 / K24W2 / K24W3
|
|
Bare Cylinder Head Shell (No Valve Train)
|
11000-5A2-A00 / 11000-5A2-810
|
Empty head for remanufacturing, casting mark 5A2
|
|
Intake Camshaft
|
14110-5A2-A00
|
DI i-VTEC intake camshaft
|
|
Exhaust Camshaft (With high pressure pump drive gear)
|
14210-5A2-A00
|
Exclusive to K24W direct injection engine
|
|
Single Intake Valve
|
14711-5A2-A00
|
Standard size intake valve
|
|
Single Exhaust Valve
|
14721-5A2-A00
|
Standard size exhaust valve
|
|
Universal Valve Stem Oil Seal (Intake & Exhaust)
|
12210-5A2-A01
|
Single seal for each valve
|
|
Inner & Outer Valve Spring Assembly
|
14751-5A2-A00
|
Complete spring set per valve
|
|
Full Cylinder Head Bolt Kit (10 Pcs Torque-to-Yield)
|
90004-5A2-A00
|
Special stretch head bolts
|
|
Valve Guide Sleeve
|
12231-5A2-A00
|
Replacement guide for engine overhaul
|
|
Part Name
|
OEM Number
|
Remarks
|
|
Complete Forged Crankshaft Assembly
|
13310-5A4-H00
|
K24W exclusive crankshaft, cannot interchange old K24A / K24Z
|
|
Standard Main Bearing Set (STD, 5 pairs upper & lower)
|
13315-5A2-A00
|
Crankshaft main bearing full set
|
|
Crankshaft Thrust Washer Set
|
13316-5A2-A00
|
Axial positioning shims for crankshaft
|
|
Single Complete Connecting Rod
|
13210-5A2-A00
|
4 rods total for 4 cylinders, casting 5A2
|
|
Standard Connecting Rod Bearing (STD single pair)
|
13215-5A2-A00
|
Big end bearing for connecting rod
|
|
Connecting Rod Bolt (Single fastener)
|
90014-5A2-A00
|
Rod cap bolt
|
|
STD Complete Piston (With wrist pin & circlip)
|
13010-5A2-A00
|
Dish-top piston for direct injection K24W engine
|
|
Single Cylinder Piston Ring Set (3 rings)
|
13030-5A2-A00
|
2 compression rings + 1 oil control ring
|
|
Piston Wrist Pin
|
13041-5A2-A00
|
Pin connecting piston and connecting rod
|
|
Part Name
|
OEM Number
|
Remarks
|
|
Full Engine Overhaul Gasket Kit (All upper & lower seals)
|
06110-5A2-A00
|
Contains oil pan gasket, front/rear crankshaft seals, all small gaskets
|
|
Valve Grind Top Gasket Set (Cylinder head only)
|
06120-5A2-A00
|
Only for head disassembly, excludes oil pan gasket
|
|
MLS Multi-Layer Steel Cylinder Head Gasket
|
12251-5A2-A01
|
Reinforced metal head gasket for DI engine
|
|
Valve Cover Rubber Gasket
|
12341-5A2-A01
|
Factory OEM cover seal for all K24W variants
|
|
Integrated Intake Manifold Gasket Set
|
17105-5A2-A00
|
Full gasket set for rear-facing intake manifold
|
|
Integrated Exhaust Manifold Gasket
|
18115-5A2-A00
|
Front exhaust manifold single gasket
|
|
Front Crankshaft Oil Seal (Timing Chain Side)
|
91212-5A2-A01
|
Timing gear end oil seal
|
|
Rear Main Crankshaft Oil Seal (Flywheel Transmission Side)
|
91214-5A2-A01
|
Large rear crank seal
|
|
Aluminum Oil Pan Gasket
|
11251-5A2-A00
|
Oil pan rubber sealing gasket
|
|
Part Name
|
OEM Number
|
Remarks
|
|
Primary Silent Timing Chain
|
14401-5A2-A00
|
Low-noise timing chain for K24W
|
|
Hydraulic Timing Chain Tensioner
|
14510-5A2-A01
|
Double-lever automatic hydraulic adjuster
|
|
Timing Chain Guide & Damper Rail Kit
|
14530-5A2-A00
|
Upper & lower sliding timing guides
|
|
Complete Engine Oil Pump Assembly
|
15100-5A2-A02
|
Front-mounted oil pump with pressure regulator valve
|
|
Oil Pump Drive Small Chain
|
15131-5A2-A00
|
Short chain driving oil pump gear
|
|
i-VTEC OCV Oil Control Solenoid Valve
|
15830-5A2-A01
|
Variable valve timing hydraulic control valve
|
|
High Pressure Fuel Pump (Mounted on exhaust camshaft)
|
16700-5A2-A01
|
Exclusive direct injection fuel pump for K24W series
|
K24W1 for 2013–2015 Accord; K24W2 for 2016–2017 Accord; K24W3 for CR-V RM4; K24W5 for Acura TLX UB1. All parts above fit all K24W sub-models universally.
