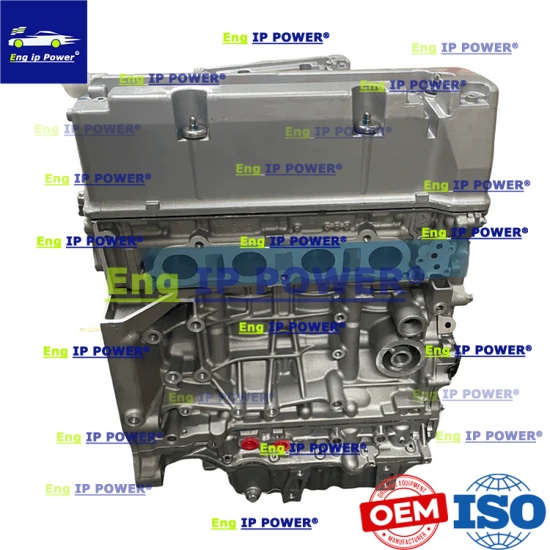

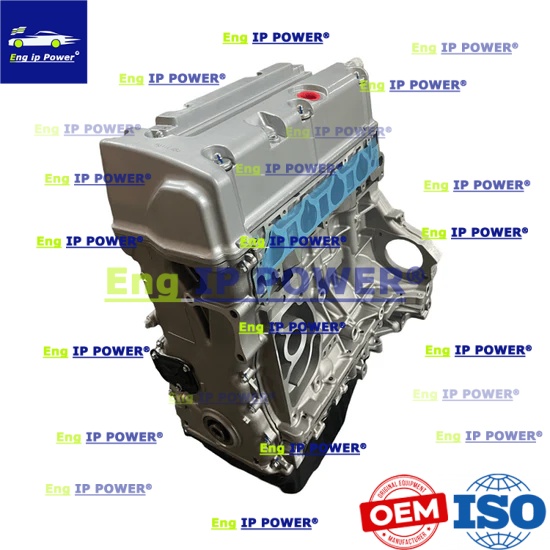

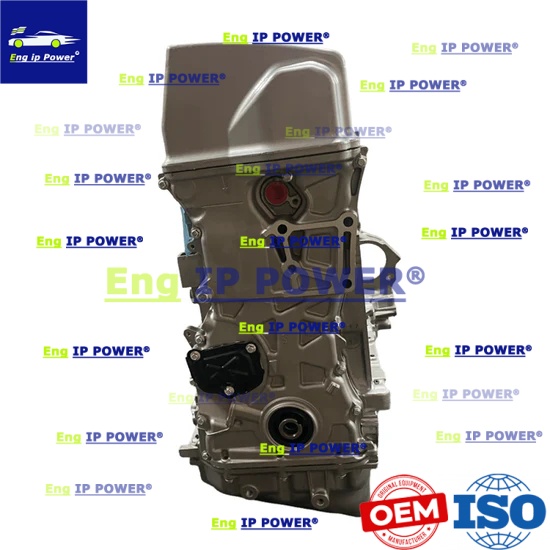

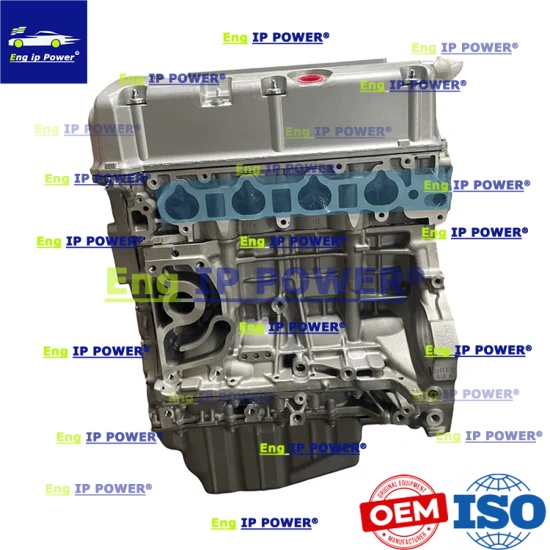

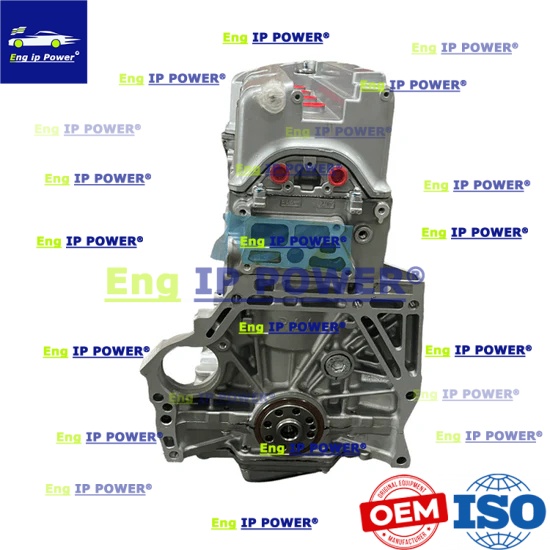

Part Name
|
OEM Number
|
Remarks
|
|

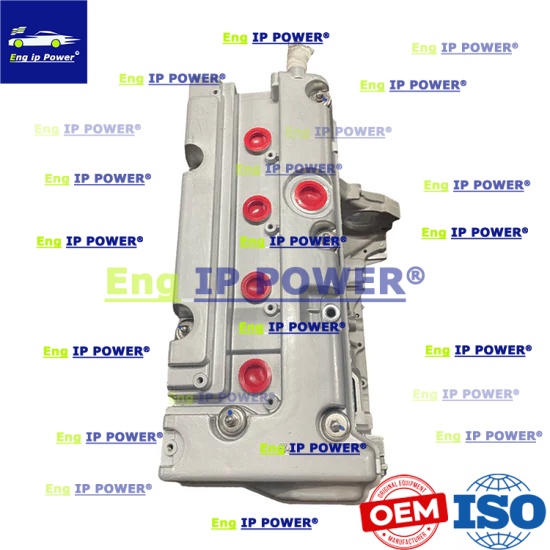

Complete Assembled Cylinder Head (With Camshafts, Valves, Rockers)
|
10003-R40-A00
|
Full assembled head exclusive for K24Z1, casting mark R40
|
|
Bare Cylinder Head Shell (No Valve Train)
|
11000-R40-A00
|
Empty head housing for remanufacturing overhaul
|
|
Intake Camshaft (High-lift i-VTEC)
|
14110-R40-A00
|
Unique high-lift cam for K24Z1 Civic Si / CR-V
|
|
Exhaust Camshaft
|
14210-R40-A00
|
Standard exhaust camshaft, interchangeable with K24Z3
|
|
Single Intake Valve
|
14711-PNA-000
|
Standard size intake valve, universal K-series
|
|
Single Exhaust Valve
|
14721-PNA-000
|
Standard size exhaust valve, universal K-series
|
|
Universal Valve Stem Oil Seal (Intake & Exhaust)
|
12210-PPA-003
|
Single seal for each valve
|
|
Inner & Outer Valve Spring Assembly
|
14751-R40-A00
|
Reinforced high-rev spring set for K24Z1
|
|
Full Torque-to-Yield Cylinder Head Bolt Kit (10 Pcs)
|
90004-R40-A00
|
Special stretch head bolts, one-time use only
|
|
Valve Guide Sleeve
|
12231-PPA-000
|
Replacement valve guide for engine rebuild
|
|
Part Name
|
OEM Number
|
Remarks
|
|
Complete Forged Crankshaft Assembly
|
13310-R40-A00
|
K24Z1 exclusive crankshaft, cannot interchange old K24A series
|
|
Standard Main Bearing Set (STD, 5 pairs upper & lower)
|
13315-PNA-003
|
Complete crankshaft main bearing kit
|
|
Crankshaft Thrust Washer Set
|
13316-PNA-000
|
Axial positioning shims for crankshaft
|
|
Single Complete Connecting Rod
|
13210-R40-A00
|
4 rods total for 4 cylinders, reinforced forged rod
|
|
Standard Connecting Rod Bearing (STD single pair)
|
13215-PNA-003
|
Big end bearing for connecting rod
|
|
Connecting Rod Bolt (Single fastener)
|
90014-R40-A00
|
High tensile rod cap bolt
|
|
STD Complete Piston (With wrist pin & circlip)
|
13010-R40-A00
|
Dome-top high-compression piston for K24Z1
|
|
Single Cylinder Piston Ring Set (3 rings)
|
13030-R40-A00
|
2 compression rings + 1 oil control ring
|
|
Piston Wrist Pin
|
13041-PPA-000
|
Pin connecting piston and connecting rod
|
|
Part Name
|
OEM Number
|
Remarks
|
|
Full Engine Overhaul Gasket Kit (All upper & lower seals)
|
06110-R40-A00
|
Contains oil pan gasket, front/rear crankshaft seals & all small gaskets
|
|
Valve Grind Top Gasket Set (Cylinder head only)
|
06120-R40-A00
|
Only for head disassembly, excludes oil pan gasket
|
|
MLS Multi-Layer Steel Cylinder Head Gasket
|
12251-R40-A01
|
Reinforced metal head gasket for high-rev engine
|
|
Rubber Valve Cover Gasket
|
12341-R40-A00
|
Factory OEM valve cover sealing gasket
|
|
Integrated Intake Manifold Gasket Set
|
17105-R40-A00
|
Full gasket set for single-piece intake manifold
|
|
Exhaust Manifold Gasket
|
18115-R40-A00
|
Single exhaust manifold sealing gasket
|
|
Front Crankshaft Oil Seal (Timing Chain Side)
|
91212-PPA-003
|
Oil seal at timing gear end
|
|
Rear Main Crankshaft Oil Seal (Flywheel Transmission Side)
|
91214-PPA-003
|
Large rear crankshaft oil seal
|
|
Aluminum Oil Pan Gasket
|
11251-PPA-000
|
Rubber seal gasket for aluminum oil pan
|
|
Part Name
|
OEM Number
|
Remarks
|
|
Primary Timing Chain
|
14401-PNA-004
|
176-link silent timing chain for K24Z1
|
|
Hydraulic Timing Chain Tensioner
|
14510-PPA-003
|
Automatic hydraulic chain adjuster
|
|
Timing Chain Guide & Damper Rail Kit
|
14530-PPA-000
|
Upper & lower sliding timing guides
|
|
Complete Engine Oil Pump Assembly
|
15100-RAA-A02
|
Front-mounted oil pump with pressure regulator valve
|
|
Oil Pump Drive Small Chain
|
15131-PPA-000
|
Short chain driving oil pump gear
|
|
i-VTEC OCV Oil Control Solenoid Valve
|
15830-R40-A01
|
Variable valve timing hydraulic control valve
|
K24Z1 is factory fitted for 2008–2011 Honda CR-V RE series and 2009–2011 Civic Si FA5/FG2 for North American & Southeast export markets.
