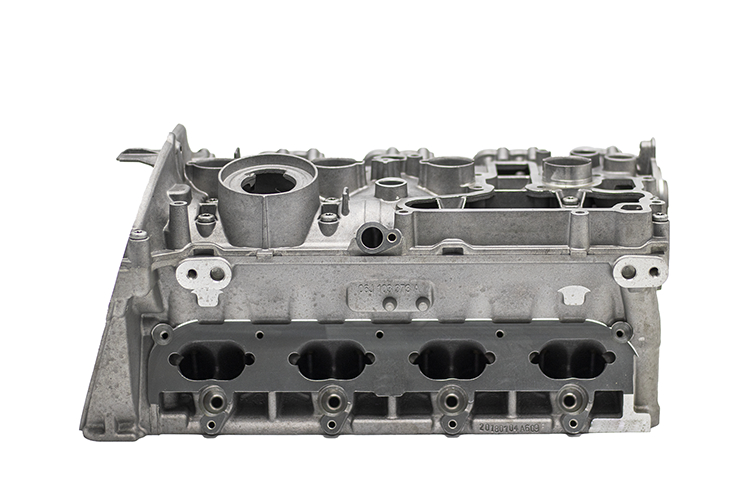

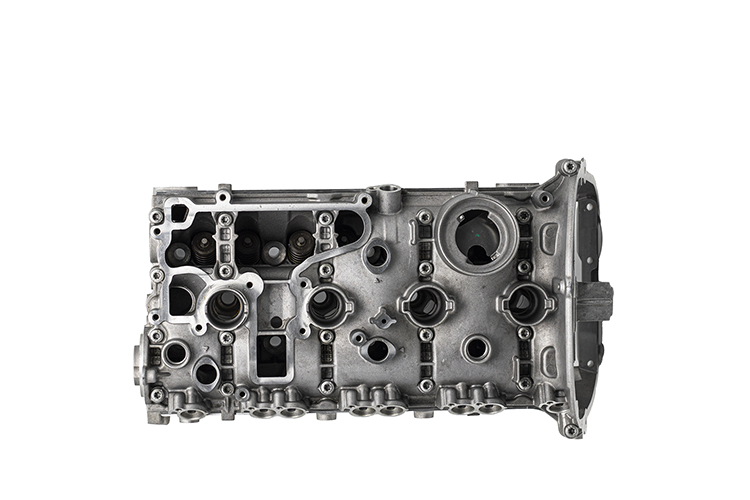

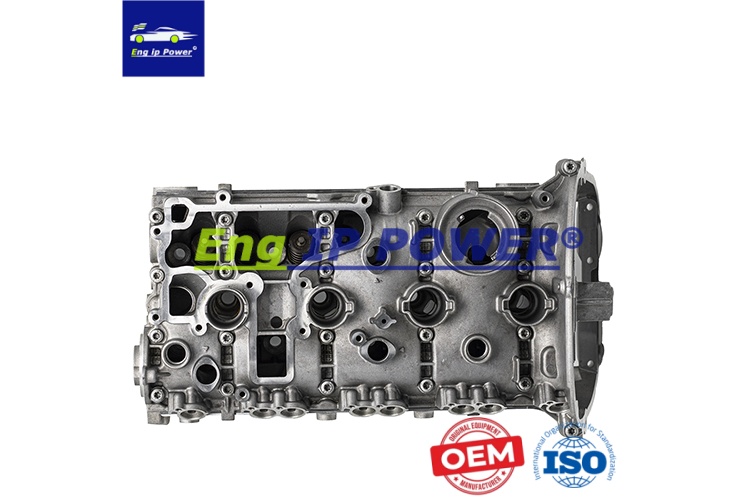

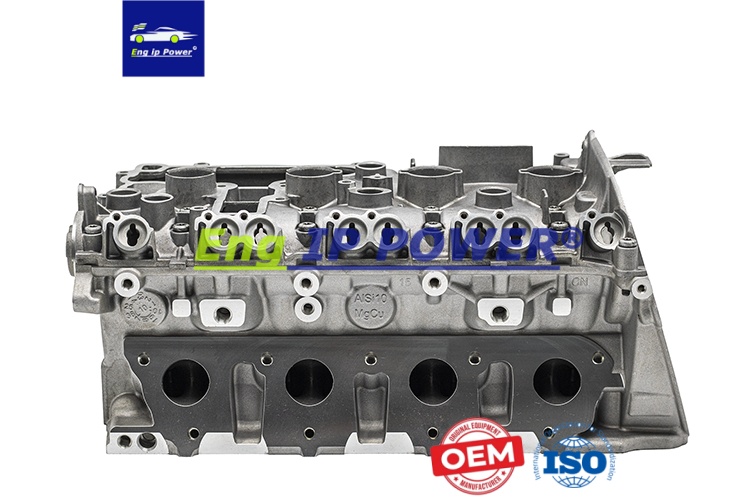

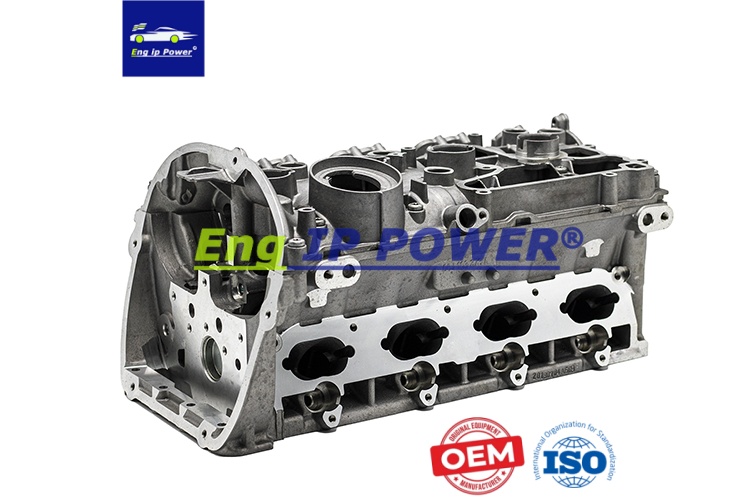

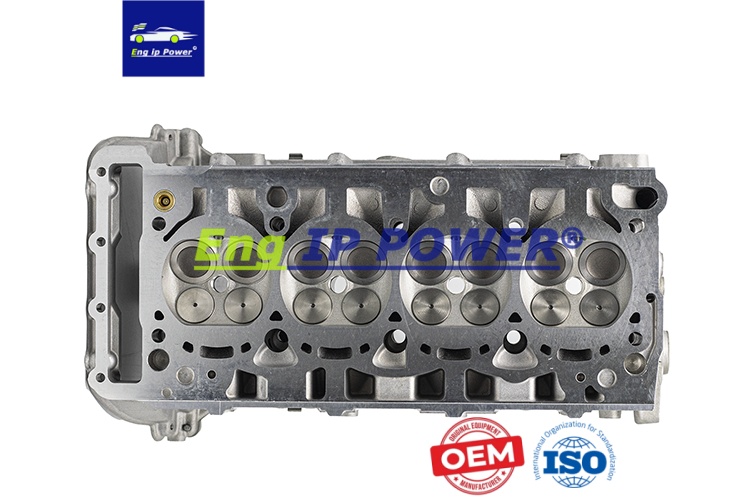

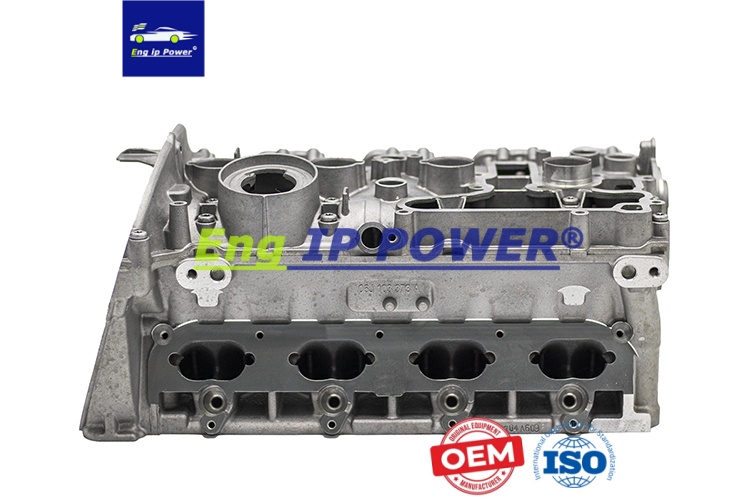

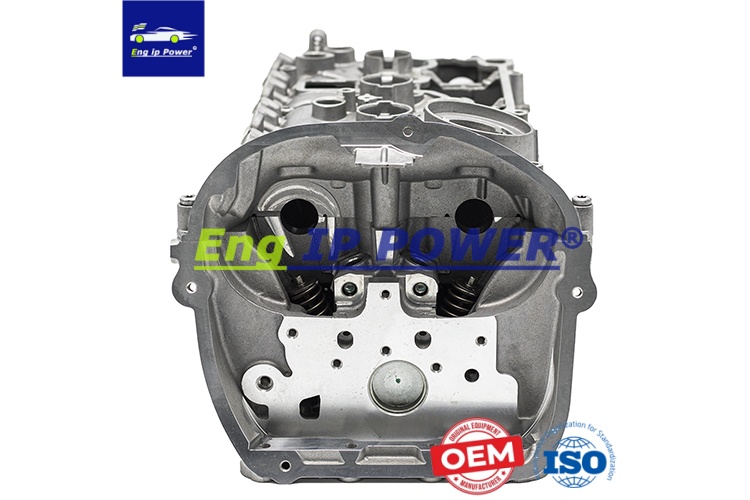

Product Introduction of EA888 Q5 Complete Cylinder Head

I. Product Overview

A. Applicable Brand

B. Product Numbers

1. Original Equipment Manufacturer (OE) Numbers
   • 06H103063L, 06H103064L, 06H103064AC: These OE numbers are specific identifiers for the EA888 Q5 complete cylinder head. They are used to precisely match the part with the corresponding engine and vehicle models within the Volkswagen - Group's manufacturing and parts - identification system.
2. Aftermarket (AMC) Number
   • 910703: This number is likely used in the aftermarket parts - identification or cataloging system. It can help aftermarket suppliers, repair shops, and vehicle owners quickly identify and source the correct cylinder head for their needs.

C. Compatible Engine Types

1. CAEA, CAEB, CAED, CDNA, CDNB, CDNC, CESA, CETA, CFKA, CPMA, CPMB, EA888: The cylinder head is designed to be compatible with a wide range of engine variants within the EA888 engine family. These engine codes represent different configurations and specifications of the EA888 engine, and the cylinder head is engineered to work effectively with each of them.

II. Applicable Vehicle Models

1. Audi Q5: As indicated by the product name “EA888 Q5 Complete Cylinder Head,” it is directly applicable to Audi Q5 models equipped with the EA888 - series engines. In the Q5, this cylinder head plays a crucial role in the engine's operation, contributing to power output, fuel efficiency, and overall performance.
2. Some Volkswagen Models: Given that the engine is part of the Volkswagen - Group's engine lineup, it may also be used in certain Volkswagen models that utilize the EA888 engine with the specified engine types. Examples could include Volkswagen Golf, Jetta, or Passat models, depending on the model year and engine configuration.

III. Structural and Material Features

A. Material

1. High - Quality Aluminum Alloy: Commonly, the cylinder head is made of high - quality aluminum alloy. Aluminum alloy offers several advantages. It has excellent heat - dissipation properties, which are essential for the EA888 engine. This engine is known for its high - performance characteristics, and efficient heat dissipation helps maintain optimal operating temperatures. It reduces the risk of overheating, which can lead to engine damage, such as warping of the cylinder head or damage to internal components. Additionally, the lightweight nature of aluminum alloy contributes to better fuel economy by reducing the overall weight of the engine. This, in turn, can improve the vehicle's acceleration and handling.

B. Structural Design

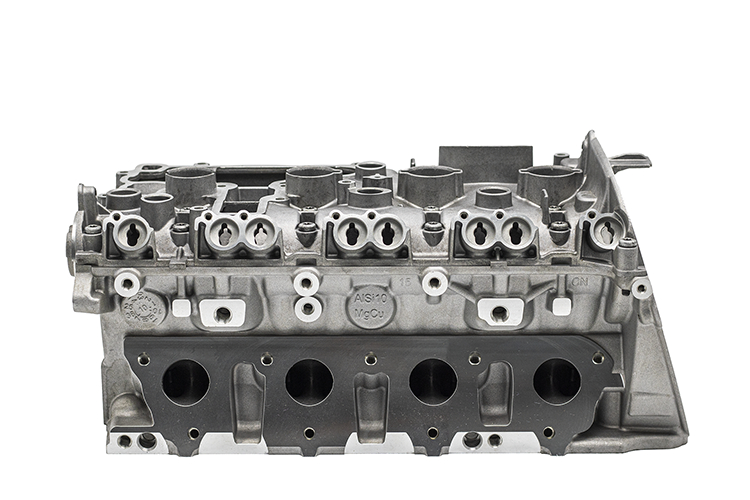

1. Precision - Engineered Intake and Exhaust Ports: The cylinder head features precisely designed intake and exhaust ports. The intake ports are designed to ensure a smooth and efficient flow of air into the combustion chamber. This promotes better mixing of air and fuel, enhancing the combustion process. The shape and dimensions of the intake ports are optimized to maximize the volume of air entering the chamber while maintaining a laminar flow, which is crucial for efficient combustion.

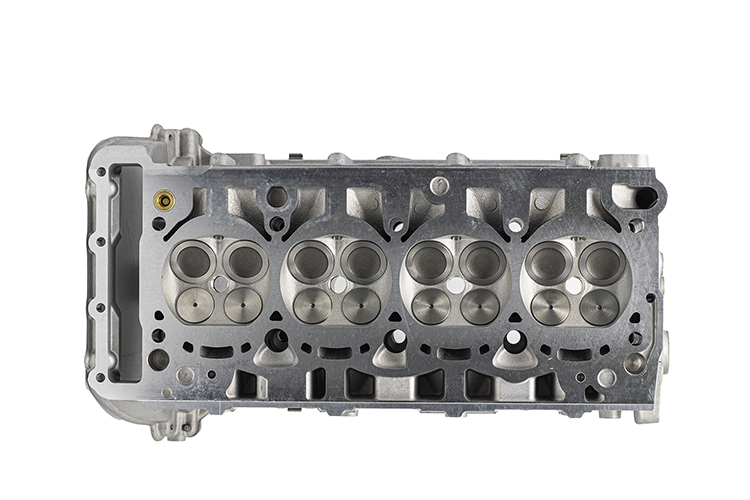

2. Optimized Combustion Chamber: The combustion chamber in the cylinder head is carefully designed to optimize the combustion process. Its shape and dimensions are tailored to the specific requirements of the EA888 engine, ensuring that the air - fuel mixture burns completely and efficiently. This not only improves power output but also helps in reducing emissions and improving fuel efficiency.

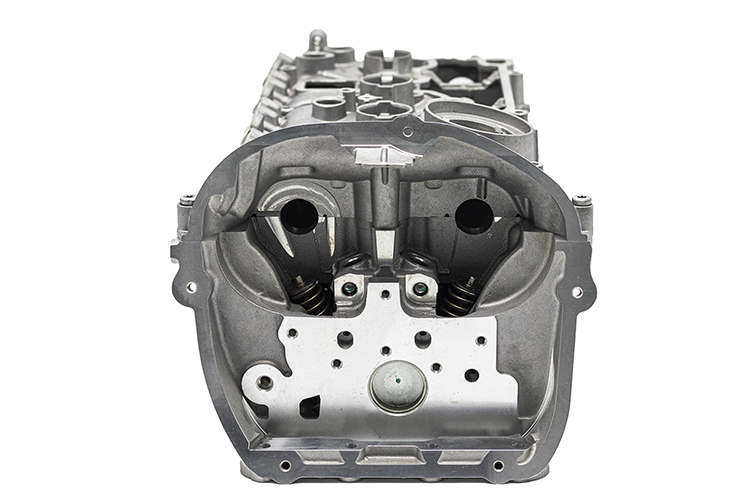

3. Integrated Valve Train Components: The cylinder head often has an integrated valve train system. The valves, valve seats, and camshaft bearing surfaces are designed to work in harmony. The valve design allows for precise control of the intake and exhaust of gases, and the camshaft bearing surfaces are engineered to reduce friction, ensuring smooth operation of the valve train. This contributes to the overall reliability and performance of the engine.

IV. Performance Characteristics

A. Power Output

1. Enhanced Combustion Efficiency: The design of the cylinder head, with its optimized intake, exhaust, and combustion chamber, leads to enhanced combustion efficiency. This results in improved power output across different engine speeds. Whether during low - speed city driving or high - speed highway cruising, the engine can deliver consistent power, allowing the vehicle to accelerate smoothly and maintain a stable speed. For example, in the Audi Q5, this enables confident overtaking maneuvers and a responsive driving experience.
2. Turbocharger Compatibility: Since the EA888 engine is often turbocharged, the cylinder head is designed to work in harmony with the turbocharger system. It can handle the increased air pressure and flow rates associated with turbocharging, ensuring that the engine can achieve high levels of power density. This allows the vehicle to have a good balance between power and fuel efficiency, as the turbocharger can boost power when needed while the efficient combustion in the cylinder head helps in maintaining fuel economy.

B. Fuel Economy

1. Efficient Combustion: The precise design of the cylinder head promotes efficient combustion of the air - fuel mixture. By ensuring complete combustion, less fuel is wasted, resulting in improved fuel economy. This is beneficial for daily driving, especially for long - distance commuting or when the vehicle is used for frequent stop - and - go traffic. In Volkswagen and Audi vehicles, this can lead to significant savings in fuel costs over the long term.

C. Reliability

1. High - Quality Manufacturing: Manufactured to strict Volkswagen - Group quality standards, the EA888 Q5 complete cylinder head has a high level of reliability. The use of high - quality materials and precision manufacturing processes ensures that the cylinder head can withstand the high - temperature and high - pressure conditions within the engine. Under normal operating conditions and with regular maintenance, it can serve for an extended period without significant issues, reducing the likelihood of engine breakdowns.

V. Maintenance and Replacement Suggestions

A. Daily Maintenance

1. Coolant Level and Quality Check: Regularly check the coolant level. The aluminum - alloy cylinder head is sensitive to overheating, and proper coolant levels are essential to prevent damage. Inspect the coolant for any signs of discoloration, contamination, or a significant drop in level. If the coolant appears dirty or has a strange color, it may indicate a problem, such as a coolant leak or internal engine corrosion. In such cases, the cause should be investigated immediately.
2. Oil Level and Quality Inspection: Keep an eye on the engine oil level and quality. The valve train components in the cylinder head rely on proper lubrication from the engine oil. Low oil levels or degraded oil can cause increased friction and wear, potentially leading to damage to the cylinder head components. Regular oil changes as per the vehicle's maintenance schedule are crucial to ensure smooth operation of the cylinder head.
3. Monitor Engine Performance: Pay attention to any changes in engine performance. Symptoms such as rough idling, loss of power, or unusual exhaust emissions could be signs of problems with the cylinder head. For example, a misfiring engine could indicate a problem with the valves or the combustion chamber in the cylinder head. If such symptoms are noticed, it is advisable to have the vehicle inspected by a qualified mechanic.

B. Replacement Key Points

1. Cylinder Head Gasket Replacement: When replacing the cylinder head, always replace the cylinder head gasket. The gasket is a critical component that seals the cylinder head to the engine block, maintaining proper compression and preventing coolant and oil leaks. Using an old or damaged gasket can lead to serious engine problems, such as coolant mixing with the oil or a loss of engine compression.
2. Bolt Torque and Sequence: Use the correct bolts and follow the torque specifications and tightening sequence provided in the vehicle's service manual. Incorrect torque can cause the cylinder head to warp or lead to leaks. A torque wrench should be used to ensure accurate tightening. The tightening sequence is designed to evenly distribute the clamping force on the cylinder head, preventing uneven stress that could cause damage.
3. Component Inspection and Cleaning: Before installing the new cylinder head, inspect all related components, such as the valves, valve seats, and camshafts. Clean any debris or carbon deposits from these components to ensure smooth operation. Additionally, check for any signs of wear or damage on these components and replace them if necessary.
4. Post - Replacement Inspection: After replacing the cylinder head, start the engine and check for any signs of coolant or oil leaks. Monitor the engine's operating parameters, such as temperature, oil pressure, and exhaust emissions. It may be necessary to perform a test drive to ensure that the engine is running properly and that there are no abnormal noises or vibrations.
