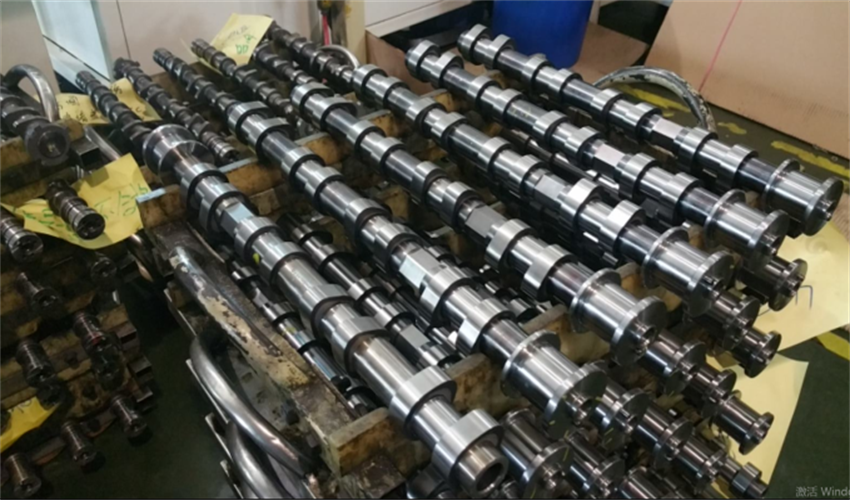

Automobile Engine Camshat production

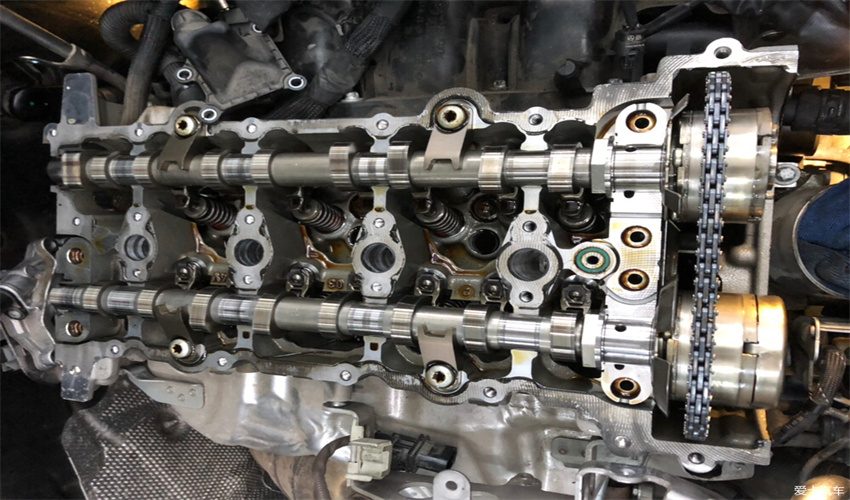

The production of an engine camshaft is a detailed and precision-driven process, involving several stages such as material selection, casting or forging, heat treatment, and fine machining. The camshaft is a critical component in an internal combustion engine, responsible for controlling the timing and movement of the intake and exhaust valves. Here's a detailed overview of the camshaft production process:

1. Design and Engineering

• CAD Design: Engineers begin by designing the camshaft using computer-aided design (CAD) software. The design factors include cam profile, timing, number of cam lobes, and material selection, all based on the engine's specific performance requirements.
• Prototyping and Testing: After the initial design, a prototype may be created and tested to ensure that it meets performance and durability standards before mass production begins.

2. Material Selection

• Material Choice: Camshafts are typically made from cast iron or forged steel, with high-performance camshafts often being made from billet steel. Cast iron is commonly used for standard engines, while steel is preferred for high-performance or heavy-duty applications due to its strength and wear resistance.

3. Casting or Forging

• Casting Process (for Cast Iron Camshafts):
  • The casting process involves creating a mold, usually made from sand, into which molten cast iron is poured to form the rough camshaft shape.
  • Once the molten metal has cooled and solidified, the rough camshaft is removed from the mold, and excess material such as runners and risers are trimmed off.
• Forging Process (for Steel Camshafts):
  • Steel camshafts are typically forged. In this process, a heated steel billet is hammered into the basic shape of a camshaft, increasing the metal’s strength and grain structure.
• Billet Machining (for High-Performance Camshafts):
  • For high-performance applications, camshafts can also be machined from a solid billet of steel using CNC (computer numerical control) machines. This allows for more precise control over the camshaft’s geometry.

4. Rough Machining

• Turning: The rough camshaft undergoes turning operations to remove excess material and create the basic shape of the camshaft, including the cam lobes, bearing journals, and shaft.
• Facing and Centering: Both ends of the camshaft are faced and centered to prepare it for further machining processes.

5. Heat Treatment

• Hardening: The camshaft is heat-treated to increase its hardness and wear resistance. This process typically involves heating the camshaft to a high temperature and then rapidly cooling it (quenching).
• Case Hardening (Induction Hardening): In some cases, induction hardening is used specifically for the cam lobes and bearing surfaces. This method involves heating these specific areas using electromagnetic induction, then quenching them to create a hard, wear-resistant surface while keeping the core of the camshaft more ductile.
• Stress Relieving: After heat treatment, the camshaft may undergo stress-relieving processes to eliminate any internal stresses caused during machining and hardening.

6. Precision Machining

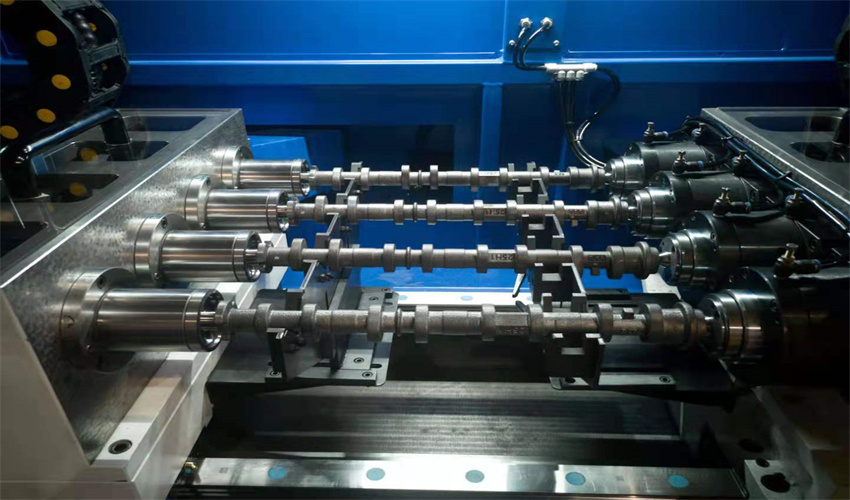

• Lobe and Journal Grinding: Precision grinding is used to finish the cam lobes and bearing journals to their final dimensions. This step ensures that the camshaft meets the required specifications for smooth operation.
• Cam Profile Grinding: The cam lobes are ground to the exact profile required for the engine’s valve timing. This step is critical, as the shape of the cam lobes determines the timing, duration, and lift of the engine’s valves.
• Polishing: The camshaft is polished to achieve a smooth surface finish, particularly on the bearing journals and cam lobes, to reduce friction and wear during operation.

7. Surface Treatment

• Nitriding (Optional): Some camshafts undergo a nitriding process, which diffuses nitrogen into the surface to further harden it and improve wear resistance. Nitriding creates a very hard surface while maintaining the ductility of the core.
• Phosphate Coating: In some cases, camshafts are coated with a phosphate layer to reduce initial wear during engine break-in.

8. Inspection and Testing

• Dimensional Inspection: Precision instruments are used to measure the dimensions of the camshaft, ensuring that all aspects, such as the lobe lift, base circle, and journal diameters, meet strict tolerances.
• Non-Destructive Testing (NDT): Techniques such as magnetic particle inspection or ultrasonic testing may be used to check for internal cracks or defects that could compromise the strength and durability of the camshaft.
• Profile Inspection: The cam profile is carefully measured to ensure that the camshaft will provide the correct valve timing and lift. This is done using specialized machines that can measure the contour of each lobe.

9. Balancing

• Dynamic Balancing: In high-performance applications, the camshaft is balanced to ensure that it rotates smoothly without causing excessive vibrations in the engine. This helps improve the engine's longevity and performance.

10. Final Assembly and Quality Control

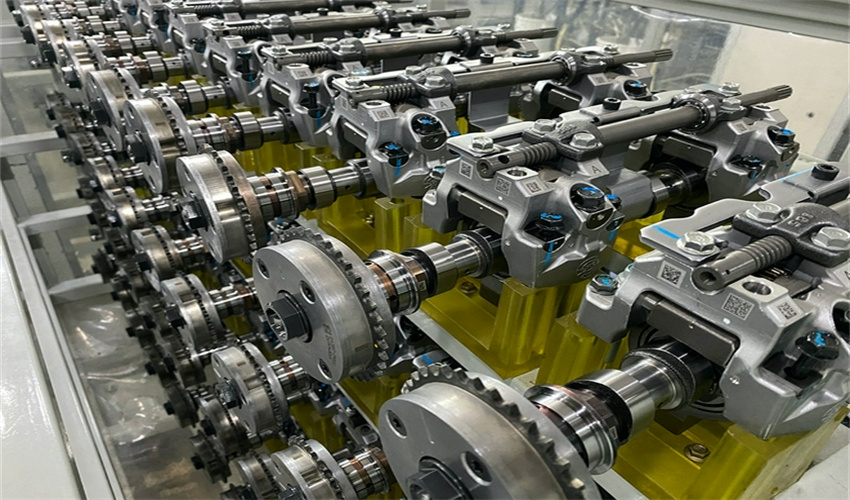

• Assembly: If applicable, additional components such as camshaft gears or sprockets are installed on the camshaft. In overhead camshaft engines, cam bearings may also be pressed into place.
• Final Quality Checks: A final inspection is performed to ensure the camshaft meets all design and performance specifications. The camshaft is then cleaned and coated with protective oil to prevent rust and corrosion.
• Packaging: After passing all quality control steps, the camshaft is packaged for shipment or installation.

Conclusion

The production of an engine camshaft is a highly specialized process involving multiple steps to ensure precision, durability, and performance. From design and material selection to heat treatment and grinding, each stage is critical to producing a camshaft that can endure the high stresses and exacting demands of modern engines.
