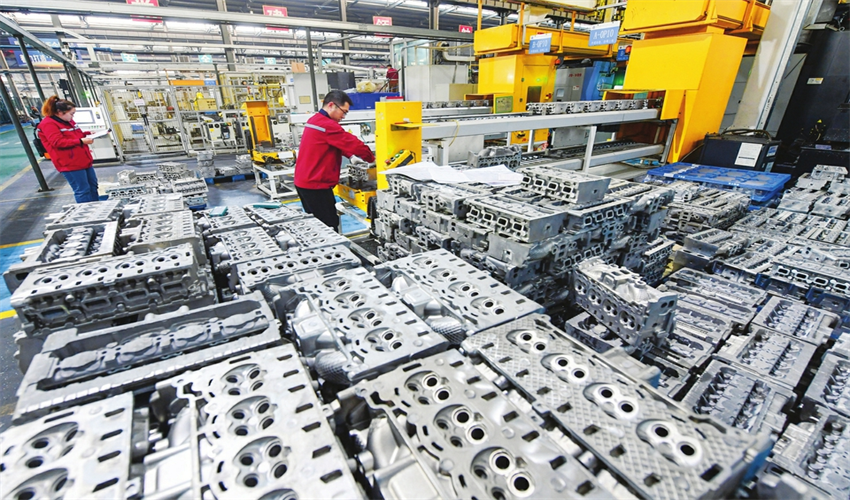

Automobile Engine cylinder head production

The production of an engine cylinder head involves various manufacturing steps, from casting the raw material to precision machining and final assembly. Here’s a detailed overview of the typical production process for an engine cylinder head:

1. Design and Engineering

• CAD Design: Engineers use computer-aided design (CAD) software to create a 3D model of the cylinder head, considering factors like airflow, heat dissipation, valve placement, and coolant passages.
• Prototyping: A prototype may be created and tested for performance, durability, and efficiency before mass production begins.

2. Casting Process

• Material Selection: Cylinder heads are typically made from cast iron or aluminum, depending on the engine’s requirements (aluminum is lighter and offers better heat dissipation, while cast iron is stronger).
• Mold Creation: Molds are created from sand or other materials, using the 3D model as a guide. These molds form the intricate internal and external shapes of the cylinder head.
• Melting and Pouring: The selected material is melted in a furnace and poured into the molds. This step is critical for shaping the cylinder head’s complex geometry, including combustion chambers, coolant passages, and valve ports.

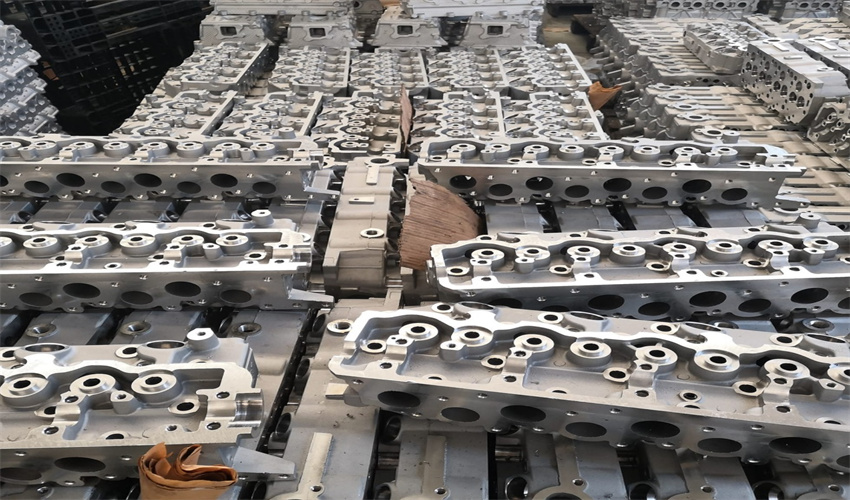

• Cooling and Extraction: After the molten metal cools and solidifies, the cylinder head casting is removed from the mold, and excess material (like gates and risers) is trimmed away.

3. Heat Treatment

• Stress Relief: To remove internal stresses that may have developed during the casting process, the cylinder head is subjected to heat treatment. This strengthens the material and prepares it for subsequent machining steps.

4. Machining

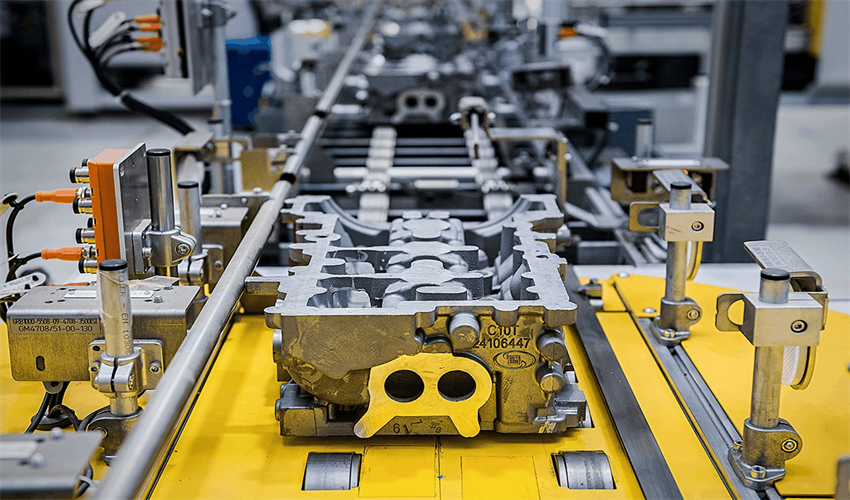

• Surface Machining: Critical surfaces, such as the deck (where the cylinder head connects to the engine block) and the valve seats, are machined flat and to precise tolerances.
• Drilling and Boring: Holes are drilled for bolts, coolant passages, oil passages, and spark plugs. Valve guides are bored, and valve seats are machined to ensure proper sealing between the valves and the combustion chamber.
• Port and Chamber Finishing: Intake and exhaust ports, as well as combustion chambers, may undergo finishing processes (such as CNC machining) to optimize airflow and combustion efficiency.

5. Valve Seat and Guide Installation

• Valve Seats: Hardened steel or other materials are installed in the cylinder head to provide a durable sealing surface for the valves.
• Valve Guides: Precision guides are inserted into the cylinder head to guide the motion of the intake and exhaust valves, ensuring proper alignment and operation.

6. Pressure Testing

• Leak Testing: The cylinder head is pressure tested to ensure that there are no leaks in the combustion chamber or cooling passages. Any defects, such as cracks or porosity in the casting, are identified at this stage.

7. Final Machining and Assembly

• Final Valve Machining: Valve seats may be lapped or ground to ensure a tight seal with the valves.
• Thread Tapping: Threads are tapped into bolt holes to prepare for final assembly with other engine components.
• Surface Cleaning: The cylinder head is cleaned to remove any debris or residual oils from machining.

8. Inspection and Quality Control

• Dimensional Inspection: Every cylinder head undergoes dimensional inspection to ensure that critical tolerances are met.
• Material Testing: Samples may be tested for material composition and strength to ensure that the cylinder head meets quality standards.
• Performance Testing: Some manufacturers may conduct flow bench testing to assess the air and fuel flow through the intake and exhaust ports, ensuring the cylinder head’s design meets performance expectations.

9. Final Assembly and Packaging

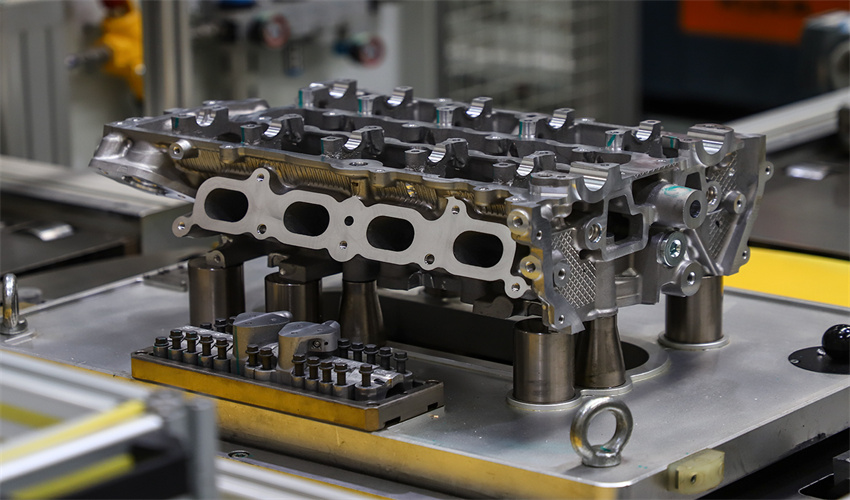

• Final Assembly: If applicable, additional components like camshaft bearings, valves, springs, and retainers are installed. The assembled cylinder head is then ready for installation on the engine block.
• Packaging: Once complete, the cylinder head is packaged securely to prevent damage during shipping.

Conclusion

Cylinder head production is a precision process that combines casting, machining, assembly, and quality control to create a key engine component responsible for housing the combustion chambers and controlling the intake and exhaust airflow. The end product must meet strict performance and durability standards to ensure optimal engine function.
